6010 Handrail Moulding 2-1/4" - 1

6010 Handrail Moulding 2-1/4" - 1

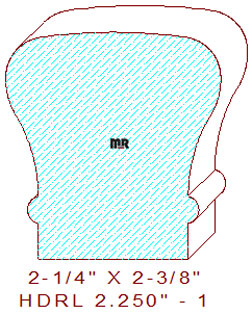

This 6010 handrail moulding 2-1/4" - 1 measures 2.250" wide by 2.375" tall. The customary handrail profile can be found in most lumber supply warehouses and some home improvement stores. The pattern is comprised of a 5-1/2" radius top, transitioning into a two tangent radius cyma reversa on each side, connected to a 9/32" wide half round circle, attached to a 3/8" tall vertical fillet on the bottom sides. The width at the very bottom is just over 1-9/16" wide, leaving enough space for plowing a 1-1/4" wide dado (6010P handrail) for balusters.

We offer a couple of different versions to review and consider when choosing this style of handrail for your beautiful home or office. Some styles have a radius top like this one handrail 2.218" - 1, or, retain a beveled top like handrail 2.250" - 22, while other similar shapes have a flat top like our handrail 2.250" - 15.

This Cad generated Dxf file contains three skillfully drafted template designs for creating knives for this creative handrail pattern. All our innovative profiles have a proven unbroken CNC (Computer numerical control) tool path expediting the production process. For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 2.250" / Depth of Cut = .281" (top knives).

Thickness = 2.375" / Depth of Cut = .582" (right blades) & .582" (left cutters), only one templated is required for the side knives.
