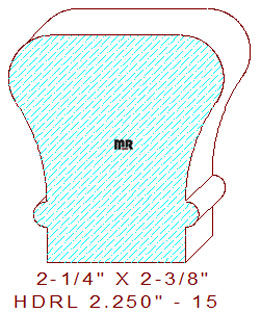

This 6010 handrail moulding 2-1/4" - 15 measures 2.250" wide by 2.375" tall. This everlasting profile can be purchased in most lumber supply stores, its unique shape resembles a loaf of bread. The detail is comprised of a straight flat top, the sides consists of two tangent radiuses creating a comfortable gripping area wehn holding the railing, connected to a 17/64" wide half round bead with a 3/8" tall vertical line on the bottom sides.
We offer a couple of different versions to consider when choosing this style of handrail for your clients. Some railing designs have a straight horizontal top like this one, while other styles have a radius top like handrail 2.218" - 1, and handrail 2.250" - 1, or you may want to consider a chamfered top like handrail 2.250" - 22.
Ever wonder why some mouldings look and feel better than others in the industry? Please read our article on moulding knife marks, learn how machine feed rates, and rpm of the cutter head can directly affect the quality of your finished mouldings. For knife quoting purposes use the calculator below, we have added only the important dimensions. A brief detailed explanation on how to use the calculator is located here.
Thickness = 2.375" / Depth of Cut = .625" (right blades) & .625" (left cutters), only one template is needed for side knives.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
