6519 Handrail 2-7/16" - 1

6519 Handrail 2-7/16" - 1

6519 Handrail 2-7/16" - 1

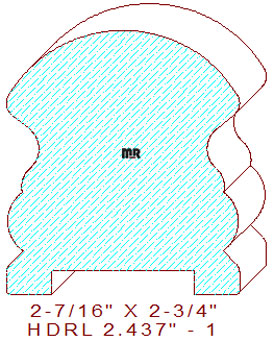

This 6519 handrail 2-7/16" - 1 measures 2.437" wide by 2.750" tall. The profile is comprised of a 1-25/64" radius top, connected to a series of tangent radiuses on the sides, creating a smooth transitional area for fingers to fit into when gripping the railing, the remaining portion of the decorative pattern consist of a 3/8" radius arc attached to a chamfer that transitions the profile to the full width. The bottom dado in the railing is milled 1-1/2" wide by 1/4" deep to receive a 1.500" wide balusters. Still, you can mill various sizes to fit the width you need. We have a larger version of this same style railing available for your review and consideration, handrail 2.625" - 8.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.329
Left Cutter Head
Thickness: 2.437
Depth of Cut: 0.329
Top Cutter Head
Width: 2.437
Depth of Cut: 0.812
Bottom Cutter Head
Width: 2.437
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$159.35
(Template not needed)
$215.10
$202.35
Total:
$707.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$172.10
(Template not needed)
$227.85
$215.10
Total:
$752.54
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$184.85
(Template not needed)
$240.59
$227.85
Total:
$797.79
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
