Handrail 2-3/4" - 23

Handrail 2-3/4" - 23

Handrail 2-3/4" - 23

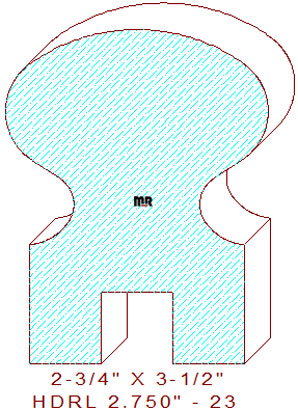

This stylish 2-3/4" - 23 handrail measures 2.750" wide by 3.500" tall, allowing machining from glued-up pieces of four, five, six, or eight-quarter lumber. The fancy profile is composed of a 2-3/4" wide by 1-9/16" tall oval shaped top consisting of two tangent radiuses, joined to a concave semicircular arc that serves as the gripping area when ascending or descending a flight of stairs in the center. The lower section retains a 1-1/4" tall vertical line segment at a 2-1/4" width, and the bottom of the railing has a centered 3/4" wide by 3/4" deep dado for balusters or mounting hardware. We offer an alternative version of this design which is small in height for your review and consideration, handrail 2.750" - 24.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.500
Depth of Cut: 0.716
Left Cutter Head
Thickness: 3.500
Depth of Cut: 0.716
Top Cutter Head
Width: 2.750
Depth of Cut: 0.577
Bottom Cutter Head
Width: 2.750
Depth of Cut: 0.750

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$272.50
$229.50
(Template not needed)
$218.00
$232.00
Total:
$952.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$289.50
$246.50
(Template not needed)
$232.00
$246.00
Total:
$1014.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$306.50
$263.50
(Template not needed)
$246.00
$260.00
Total:
$1076.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
