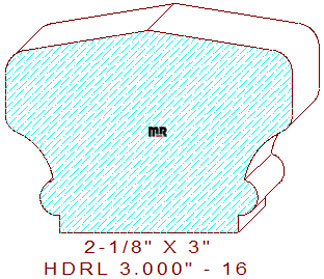

This customary 3" - 16 handrail measures 3.000" wide by 2.125" thickness, necessitating glued-up pieces of four, five, six, or eight-quarter lumber for milling on an industrial molder. The famous traditional profile is composed of two bidirectional 9.046-degree beveled lines with 1/4" radius edges on top. The symmetrical sides are comprised of a 25/64" vertical line with a 1/4" rounded edges in the upper portion, tangent to a 45/64" cove that forms the finger grip area in the center, attached to an embellishing 3/8" tall half round bead with a 13/64" vertical fillet on the bottom edges of the design. We're delighted you found a beautiful handrail profile that interests you, we offer a few other alternative width sizes in this style of railing for your review and consideration, handrail 2.250" - 38, handrail 2.625" - 24 and handrail 2.750".
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.125
Depth of Cut: 0.564
Left Cutter Head
Thickness: 2.125
Depth of Cut: 0.564
Top Cutter Head
Width: 3.000
Depth of Cut: 0.601
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$192.50
$149.50
(Template not needed)
$238.00
Not Needed
Total:
$580.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$204.00
$161.00
(Template not needed)
$253.00
Not Needed
Total:
$618.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$221.25
$178.25
(Template not needed)
$275.50
Not Needed
Total:
$675.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
