Handrail 3" - 18
Handrail 3" - 18

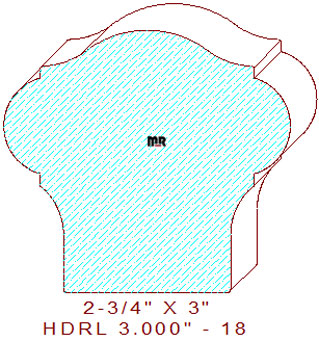

This luxurious 3" - 18 handrail measures 3.000" wide by 2.750" thickness, permitting the pattern to be milled out of glued-up pieces of four, five, and six-quarter lumber. The beautiful pattern consists of a three tangent radius wave-like curvature on the top; the sides retain a one-inch tall half-circle flanked by 1/8" line segments, joined to a 21/32" concave semicircle which forms the gripping area, attached to a 5/8" tall vertical line segment with 3/64" eased edges that transition the width at the bottom to 1-3/4" wide. We offer an alternative profile in a slightly larger width for your review and consideration, handrail 3.250" - 6.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.750
Depth of Cut: 0.819
Left Cutter Head
Thickness: 2.750
Depth of Cut: 0.819
Top Cutter Head
Width: 3.000
Depth of Cut: 0.375
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$239.00
$196.00
(Template not needed)
$238.00
Not Needed
Total:
$673.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$253.00
$210.00
(Template not needed)
$253.00
Not Needed
Total:
$716.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$274.00
$231.00
(Template not needed)
$275.50
Not Needed
Total:
$780.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
