Handrail 3-1/4" - 6

Handrail 3-1/4" - 6

Handrail 3-1/4" - 6

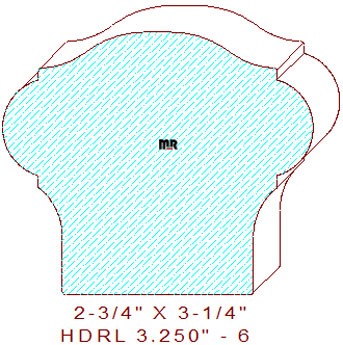

This elegant 3-1/4" - 6 handrail measures 3.250" wide by 2.750" thickness, permitting the pattern to be milled out of glued-up pieces of four, five, and six-quarter lumber. The luxurious profile is comprised of a 1/4" broad flat line in the center, tangent to a convex and concave semicircle with 3/64 eased edges on top. The sides retain a one-inch tall half-circle flanked by 1/8" line segments, joined to a 21/32" concave semicircle that forms a comfortable gripping area. Attached to a 5/8" tall vertical line segment with 3/64" eased edges that transitions the width at the bottom to two inches wide. We offer an alternative profile in a smaller width for your review and consideration, handrail 3.000" - 18.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.750
Depth of Cut: 0.823
Left Cutter Head
Thickness: 2.750
Depth of Cut: 0.823
Top Cutter Head
Width: 3.250
Depth of Cut: 0.375
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$232.00
$189.00
(Template not needed)
$243.00
Not Needed
Total:
$664.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$246.00
$203.00
(Template not needed)
$259.00
Not Needed
Total:
$708.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$260.00
$217.00
(Template not needed)
$275.00
Not Needed
Total:
$752.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
