Mullion/Muntin Moulding 2-1/2" - 1

Mullion/Muntin Moulding 2-1/2" - 1

Mullion/Muntin Moulding 2-1/2" - 1

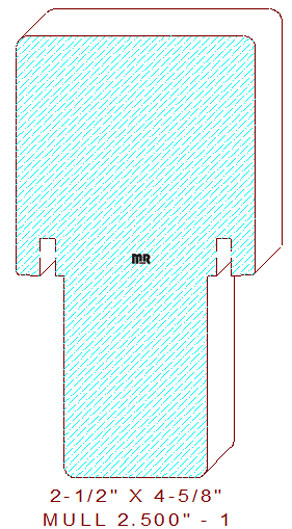

This Large T Shaped Mullion Moulding 2-1/2" - 1 measure 4.625" tall by 2.500" wide with a .781" depth of cut on the top and bottom sets of moulding knives.

The symmetrical profile is comprised of a 2-1/2" wide by 2-1/2" tall squared fillet with 1/8" radius edges on top, attached to a 2-1/8" tall by 1/2" deep rabbet on each side edge of the detail, also with 1/8" radiuses on the bottom. The small kerf for the weatherstrip is generally milled after the milling process on either a table saw or router, but could be milled on a moulder with two universal moulder spindles.

Architects, interior designers, lumber mills, and moulding manufacturers have been utilizing our vast variety of creative moulding knife designs for years, we trust you will find that special moulding profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our moulding designs, please contact us, we would be honored to assist you.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
