Bullnose 2-1/2"

Bullnose 2-1/2"

Bullnose 2-1/2"

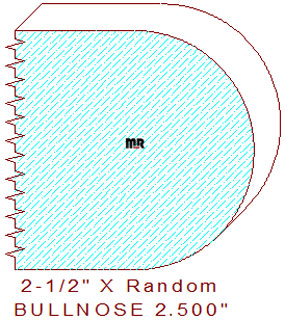

This large 2-1/2" bullnose measures 2.500" thickness. The width is adjustable to any desired size within the parameters of the molder or shaper used to cut the pattern. The simplistic profile comprises a 1-1/4" radius half-circle tangent to the top and bottom of the pattern. Be advised that bullnose profiles are milled from vertical cutter heads; you cannot use them for making half rounds because of the extra blend area incorporated in the knife design. If you're looking to mill a half-round pattern, please review and consider half round 2.500". The same holds for half-round, they get milled from the top horizontal cutter head, the knives will come within .020" of the bedplates on the machinery; therefore there is no blend area built into the cutters.

Before you begin knife grinding procedures, please read our article on knife cutting circles to see if you can safely mill this pattern on your machinery, this profile will not be able to be milled on certain models of molders.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = 2.500" / Depth of Cut = 1.320" (right blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
