This cad generated dxf file contains three skillfully drafted template designs for creating knives for this creative pattern. All our innovative profiles have a proven unbroken cnc (computer numerical control) tool path expediting the production process.
For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

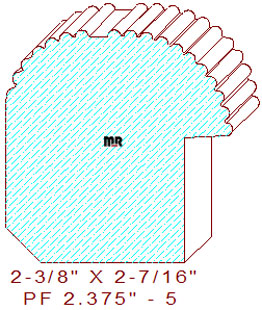

Width = 2.375" / Depth of Cut = .452" (top knives.)
Thickness = 2.437" / Depth of Cut = .468" (right blades) & .500" (left cutters.)
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
