Picture Frame 3-1/2" - 18

Picture Frame 3-1/2" - 18

Picture Frame 3-1/2" - 18

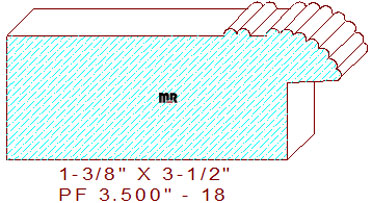

This reeded picture frame 3-1/2" - 18 measures 3.500" wide by 1.375" tall. The detailed beaded design is displayed in many religious office buildings around the world. The profile is comprised of a series of multiple 1/16" half round beads with a small offset sunk fillet in the top, the right side rabbet dimension is 9/16" wide by 13/16" tall, this is where the edge of the artwork will fit into, the left side dimension is 1-5/16" tall and designed to fit with another beautiful profile we offer that will compliment this detail, combining both patterns will create a stunning picture frame that will positively enhance the artwork and architectural decor of any home or office.

Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .297" (top knives.)

Thickness = 1.375" / Depth of Cut = .562" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
