Picture Frame 2-1/2" - 20

Picture Frame 2-1/2" - 20

Picture Frame 2-1/2" - 20

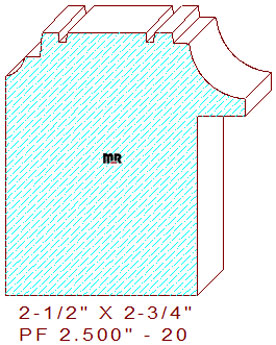

This elegant picture frame 2-1/2" - 20 measures 2.500" wide by 2.750" tall. The beautiful profile consists of a raised fillet flanked by two 3/32" wide sunk fillets on top, connected to a small notch and 5/8" cove on the right, the opposites side retains a larger notch with a smaller 1/4" cove on the left, the rabbet for another frame we offer that will tie into this design measures 1/2" wide by 1-7/8" tall. From just an idea in one's mind to reality in your client's beautiful home, our patterns reflect the attractive elegance and architectural style of their imagination, be creative by mixing and matching a few of our beautiful designs.

Learn how to become more efficient while searching over 15,000 mouldings in our state of the art profile catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.500" / Depth of Cut = .694" (top knives.)

Thickness = 2.750" / Depth of Cut = .500" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
