Picture Frame 3" - 18

Picture Frame 3" - 18

Picture Frame 3" - 18

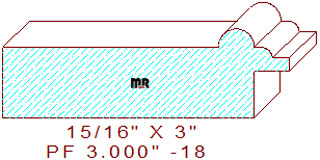

This embellishing picture frame 3" - 18 measures 3.000" wide by .937" thickness, requiring five-quarter lumber to mill the pattern. The design is meant to be used in unison with another profile we offer, together they create a stunning architectural picture frame that will enlighten the artwork in which it is encased. The profile consists of a 2-1/4" wide straight line at 3/4" thickness, connected to a 3/8" wide half circle with a 1/8" radius step and an 11/64" wide sunk fillet above the rabbet which measures 3/8" wide by 1/2" tall.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .306" (top knives.)

Thickness = .937" / Depth of Cut = .375" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
