Picture Frame 2-13/16" - 1

Picture Frame 2-13/16" - 1

Picture Frame 2-13/16" - 1

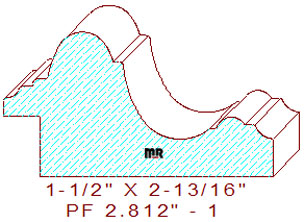

This distinguished picture frame 2-13/16" - 1 measure 2.812" wide by 1.500" tall; it will require eight quarter lumber for milling this detail on an industrial molder; we recommend planing the lumber down to 1-3/4" thickness to ease the stress on the knives from having to cut such a deep detail. The beautiful profile is composed of a thumbnail-shaped arc joined to two 5/32" wide stepped lines with a 7/64" cove on the left side, attached to a 7/64" wide line segment that transitions into a deep two tangent radius scotia in the center, connected to a 19/64" wide half circle flanked by small line segments with a 13/64" cove on the right side of the pattern. The rabbet for the artwork on the left side measures 3/8" wide by 5/8" tall and is included in the downloadable dxf file available below. You may want to consider utilizing this pattern as a large bolection moulding on a panel of an exterior door, whatever you decide, it will surely heighten the architectural decor of the room in which it is installed.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Diehl, Kentwood, Wadkin, Scmi, Shop Fox, Williams & Hussey and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.812" / Depth of Cut = 1.111" (top knives.)

Thickness = 1.500" / Depth of Cut = .375" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
