Picture Frame 2-7/8"

Picture Frame 2-7/8"

Picture Frame 2-7/8"

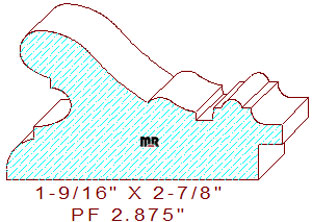

This uniquely elegant picture frame 2-7/8" measures 2.875" wide by 1.562" thickness, requiring eight quarter lumber for milling. The beautifully distinguished profile is composed of a 21/64" quarter round bead with a 1/8" vertical line segment on the left-hand side, connected to a deep sloping offset scotia with a 3/32" tall line that transitions into the elliptical shaped top, joined to a graceful down sloping concave arc that merges with a small cyma reversa and a vertical step, attached to a 3/16" wide sunk fillet that transforms into a 7/32" wide bead flanked by two line segments, with a 5/32" congee above the rabbet which measures 1/4" wide by 3/8" tall.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Diehl, Kentwood, Wadkin, Scmi and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.875" / Depth of Cut = .980" (top knives.)

Thickness = 1.562" / Depth of Cut = .671" (right blades) & .250" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
