Picture Frame 2-7/8" - 1

Picture Frame 2-7/8" - 1

Picture Frame 2-7/8" - 1

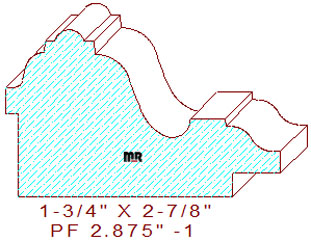

This intricate picture frame 2-7/8" - 1 measures 2.875" wide by 1.750" thickness, enabling the pattern to be milled from eight-quarter lumber. The attractively ornate decorative profile is composed of a 1/8" wide by 7/8" high rabbet joined to a 9/32" vertical line with a two tangent radius ogee on the left side, the top consists of a 5/16" wide half circle flanked by two stepped lines that transform into a four tangent radius french curve in the center, connected to a 3/8" wide by 5/64" tall raised fillet with another shallower ogee on the right side of the design. The rabbet dimension for the artwork is 1/2" wide by 1/4" tall, this area is adjustable in height with a simple axial adjustment of the right cutter head on the molder.

Before you begin knife grinding procedures, please read our article on knife cutting circles to see if you can safely mill this pattern on your machinery, this profile will not be able to be milled on certain models of molders.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.875" / Depth of Cut = 1.269" (top knives.)

Thickness = 1.750" / Depth of Cut = .500" (right blades) & .125" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
