Picture Frame 3-1/2"

Picture Frame 3-1/2"

Picture Frame 3-1/2"

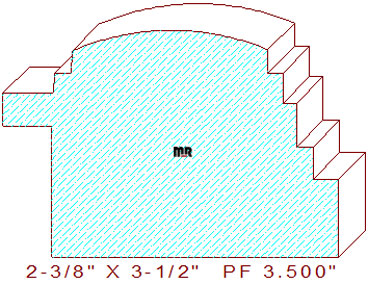

This southwest-themed picture frame 3-1/2" measures 3.500" wide by 2.375" thickness, the rough blank for milling will most likely be glued up from four quarter lumber. The stepped profile is composed of a 2-19/32" radius arc in the center, joined to two steep steps above the rabbet for the artwork on the left, the rabbet dimension is 1/2" wide by 1-3/8" tall, the right side of the detail retains a series of four steep steps of various widths, leaving a 13/16" thickness dimension on the side edge of the pattern.

Our high precision acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, or Homag molder, our cutters will mill flawlessly on them all.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .662" (top knives.)

Thickness = 2.375" / Depth of Cut = .738" (right blades) & .500" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
