Picture Frame 3-1/2" - 8

Picture Frame 3-1/2" - 8

Picture Frame 3-1/2" - 8

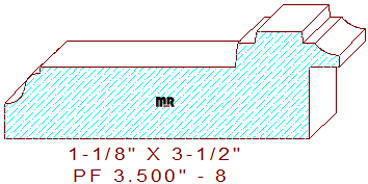

This custom picture frame 3.500" - 8 measures 3.500" wide by 1.125" thickness, allowing the detail to be milled from either five or six-quarter lumber. The attractive profile is composed of a two-tangent radius ogee on the left, joined to a 1/16" vertical upward step and 2-1/16" wide horizontal line segment in the middle, connected to a 1/2" wide by 1/8" tall raised fillet flanked by small horizontal line segments and a 5/16" radius cove on the right side above the rabbet which measures 5/16" wide by 3/4" tall. This professionally drafted cad dxf file (available for purchase in the box below) contains two high precision template designs to create cutters for this gorgeous picture frame detail.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Homag, Scmi, Diehl, Wadkin, Williams & Hussey and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .750" (top knives.)

Thickness = 1.125" / Depth of Cut = .312" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
