Picture Frame 4-3/8" - 3

Picture Frame 4-3/8" - 3

Picture Frame 4-3/8" - 3

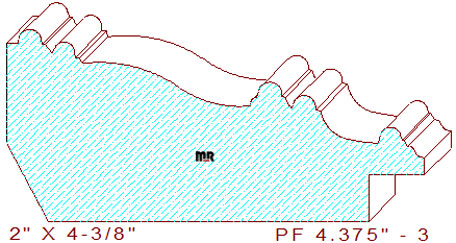

This luxurious picture/mirror frame 4-3/8" - 3 measures 4.375" wide by 2.000" tall, allowing the detail to be machined from glued-up pieces of four, five or six-quarter lumber. The stylish profile is composed of a 1-3/16" tall vertical line with a 28.132 degree angled line on the lower left side, the top consists of a series of cascading beads and line segments divided by a graceful two tangent radius cyma reversa in the center, on the right side they are divided by an elliptical shaped cove with a tiny ogee above the 5/8" wide by 1/2" tall rabbet for the artwork.

Before beginning knife grinding procedures, please read our article on knife cutting circles to see if you can safely mill this pattern on your machinery, this pattern will not be able to be milled on certain models of molders. Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.375" / Depth of Cut = 1.334" (top knives.)

Thickness = 2.000" / Depth of Cut = .500" (right blades) & .625" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
