Plinth Block 3-3/8" - 1

Plinth Block 3-3/8" - 1

Plinth Block 3-3/8" - 1

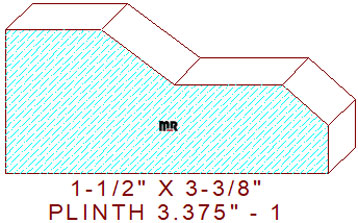

This tall, hefty beveled plinth block 3-3/8" - 1 measure 3.375" wide by 1.500" thickness, requiring the use of eight quarter lumber for milling on an industrial style molder. The angled profile is composed of a one-inch wide straight flat line on the top left, connected to a 36.94-degree obtuse angle that joins to a 1-1/8" wide line segment in the center, attached to a 41.55-degree beveled edge that transitions the thickness to a 1/2" thickness dimension on the right side of the design.

Review our commentary on custom made pressure shoes,. This helpful step by step article will help you mill this profile to perfection. Did you know we design and grind knives for all the major machinery brand names, including Weinig, Leadermac, Homag, Scmi, Diehl, Wadkin, Williams & Hussey, and more? Try our exceptional services; you'll be delighted with the results; all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes, click the calculator below; we have added only the important measurements and enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.375" / Depth of Cut = 1.063" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
