Plinth Block 4" - 3

Plinth Block 4" - 3

Plinth Block 4" - 3

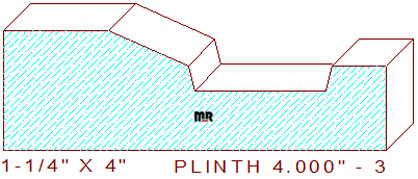

This beautifully bold plinth block 4" - 3 measures 4.000" wide by 1.250" thickness, enabling the pattern to be milled from six-quarter lumber. The angled profile is composed of a 1-3/32" wide flat line on the left side, connected to a 53/64" wide, obtuse angle that joins to a 17/64" deep acute angle that transitions into a 1-1/2" wide off-centered sunk fillet, merged with another 17/64" wide up-sloped acute angle attached to a 9/16" wide line segment on the right side of the pattern.

Review our commentary on custom made pressure shoes . This helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major machinery brands, including Weinig, Leadermac, Homag, Scmi, Diehl, Wadkin, Williams & Hussey, and more? Try our exceptional services; you'll be delighted with the results; all the beautiful profiles you manufacture will surely be a cut above the rest.

For knife quoting purposes, click the calculator below; we have added only the important measurements and entered the appropriate dimension in the boxes provided. A brief detailed explanation of using the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart and place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .625" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
