Plinth Block 5" - 1

Plinth Block 5" - 1

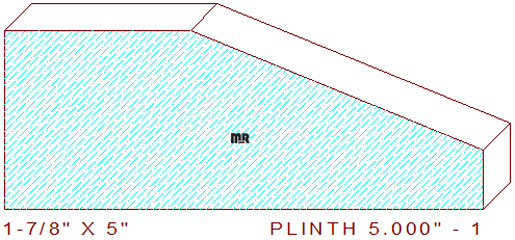

This Plinth Block 5" - 1 measures 5.000" wide by 1.875" thickness with a 1.312" depth of cut on the top set of moulding knives. Before you begin moulding knife grinding procedures, please read our article on Moulder Knives Cutting Circle to see if you can mill this pattern on your machinery.
The profile is comprised of a 1-15/16" wide horizontal fillet, connected to a 22.203-degree bevel that spans the distance of 3-1/16" wide, leaving a 5/8" thickness dimension on the thin side of the pattern.
We offer thousands of innovative profiles designed to save valuable time and money in your demanding milling production schedule, try one of our beautiful designs today.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
