Plinth Block 5" - 2

Plinth Block 5" - 2

Plinth Block 5" - 2

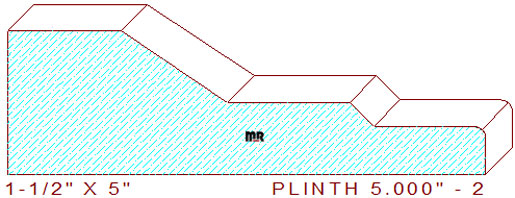

This modern plinth block 5" - 2 measures 5.000" width by 1.500" thickness, requiring a 5-1/2" wide blank of eight-quarter lumber for milling on an industrial moulder. The beveled pattern is designed to complement door casing 4.750" - 12. The detail comprises a 1-3/16" flat section on the top left. The line transitions downward 3/4" to a 1-9/32" broad fillet in the center. The line segment connects to a 1/4" wide by 1/4" tall angled area joining a 1-11/64" flat section with a 1/8" rolled edge on the patterns right side.

Before you begin knife grinding procedures, review this article on knife cutting circles to determine if you can safely cut this pattern on your machinery, this profile might have knife swing issues on certain moulders.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 5.000" / Depth of Cut = 1.281" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
