Plinth Block 9-5/8"

Plinth Block 9-5/8"

Plinth Block 9-5/8"

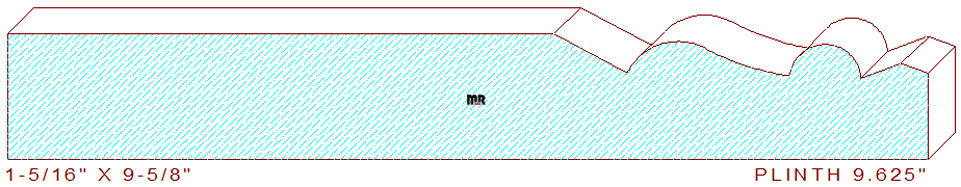

This tall plinth block 9-5/8" measures 9.625" wide by 1.312" thickness, permitting the detail to be machined out of six quarter lumber. The interesting profile is composed of a 5-45/64" wide straight flat line on the top left, attached to an elevation changing 7/8" wide splay face beveled line that joins to a two tangent radius cyma reversa in the center, connected to a 3/4" wide half-circle with a 7/16" up-sloping and a 9/32" wide chamfer on the right side of the pattern.

Ever wonder why certain species of lumber have tear-out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the knives. Purchasing 12/20 duel angle cutter heads will save substantial money when investing in this style of tooling.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 9.625" / Depth of Cut = .474" (top knives.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
