1/2" Radius Edge - 10
1/2" Radius Edge - 10

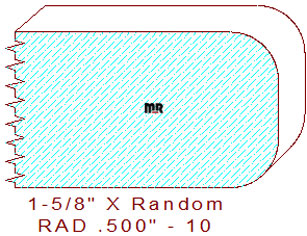

This double 1/2" radius edge - 10 measures 1.625" thick, enabling the detail to be milled from eight quarter-lumber. Width gets machined to any desired size within the parameters of the shaper/moulder used to cut the pattern. The profile comprises a 5/8" broad segment in the center, flanked by 1/2" radius semicircles on each edge. We always provide sufficient blend areas within the knife design, so no one will ever realize where one cutter begins or ends.
Weinig's light blue colored full ceramic grinding wheel, hogging at 2000 RPMs, with a twenty-five-degree back clearance angle, will rough grind a set of high-speed steel cutters in a minimal amount of time. Also, review our article on the importance of having the profile grinder level . This commentary will ensure prolonged use of your machinery while maintaining consistent perfection in knife manufacturing.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.687
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.687
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
Not Needed
Not Needed
Total:
$309.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
Not Needed
Not Needed
Total:
$328.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
Not Needed
Not Needed
Total:
$356.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
