1/2" Radius Edge Moulding - 2

1/2" Radius Edge Moulding - 2

1/2" Radius Edge Moulding - 2

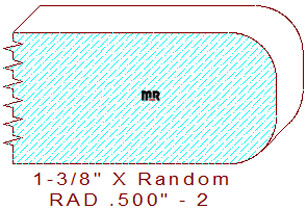

This double 1/2" radius edge molding - 2 measures 1.375" thickness, enabling the detail to be machined from six-quarter lumber; the width can be machined to any desired size within the parameters of the shaper or molder used to mill the pattern. The profile comprises a 3/8" wide line segment in the center, flanked by a 1/2" radius semicircle on each side edge of the design. We constantly provide sufficient blend areas within the knife design, so no one will ever realize where one cutter begins or ends.

Weinig's light blue colored full ceramic grinding wheel hogging at 2000 RPMs, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Also, review our article on the importance of having the profile grinder level, this commentary will ensure prolonged use of your machinery while maintaining consistent perfection when manufacturing cutters.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = 1.500" / Depth of Cut = .656" (right blades) or .656" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
