Shiplap Moulding 1" - 1

Shiplap Moulding 1" - 1

Shiplap Moulding 1" - 1

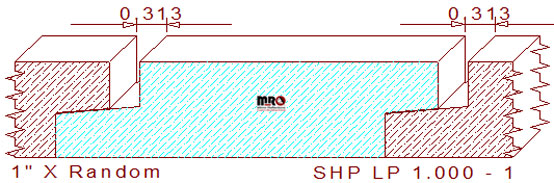

This shadow gap shiplap moulding 1" - 1 measures 1.000" thickness, allowing random width blanks of five-quarter lumber for machining on a commercial moulder. The functional profile comprises a 7/8" wide by 1/2" deep tapered rabbet on the left edge. The opposing side contains a 9/16" wide by 1/2" beveled rabbet. When two pieces of milled lumber join, they create a decorative 5/16" wide by 1/2" deep shadow gap between the merged boards.

Our professionally designed acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail. It will also prolong the milling time between sharpening. Regardless if you own an industrial shaper or a Weinig, Wadkin, Leadermac, SCMI, Diehl, Northtech, or Homag molder, our precision cutters will mill flawlessly on them all.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Thickness = 1.000" / Depth of Cut = .875" (right blades) & .562" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
