WP-3 Shiplap Moulding 5-7/16" - 4

WP-3 Shiplap Moulding 5-7/16" - 4

WP-3 Shiplap Moulding 5-7/16" - 4

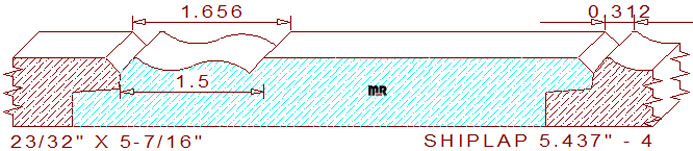

This WP-3 shiplap siding moulding 5-7/16" - 4 measures 5.437" wide by .718" thickness, enabling the detail to be milled out of four quarter lumber, the exposed face dimension is 4-15/16" wide when installed. The specialty profile is comprised of a 3-9/32" wide horizontal line segment in the center with a 5/32" wide beveled edge on the right, the opposite side of the pattern retains a two tangent radius cyma recta flanked by small chamfers and a notched fillet which fits underneath the piece in front of it during installation.

Our high precision acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, or Homag molder, our cutters will mill flawlessly on them all.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.437" / Depth of Cut = .374" (top knives.)

Thickness = .718" / Depth of Cut = .500" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
