Shiplap Moulding 5-7/16" - 6

Shiplap Moulding 5-7/16" - 6

Shiplap Moulding 5-7/16" - 6

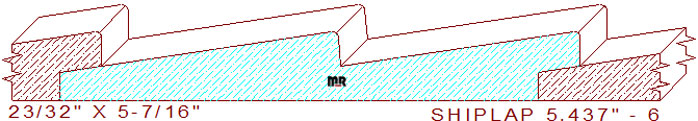

This attractive drop shiplap siding 5-7/16" - 6 measures 5.437" wide by .718" thickness, enabling the detail to be milled out of four quarter lumber. The functional profile is designed to wick moisture away from the joint and onto the exposed face side. The pattern comprises two 2-1/2" wide, 8.48-degree drop bevels with 1/16" radiuses at the points. These rounded edges will enhance the product's ability to hold paint or stain while simultaneously creating a drip edge for moisture. The rabbet on the backside measures 7/16" wide by 23/64" tall. When two pieces of finished milled lumber are joined together, the exposed face dimension will be five inches wide.

Do you realize how important proper tool balance is to your current molding operation? Find out more on how critical it is to have perfectly balanced knives, screws, gibs in the cutter head, and the problems they create if you neglect to focus on these simple tasks. Protect your current investment in woodworking machinery; your clients will appreciate your disciplined approach to molding manufacturing.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.437" / Depth of Cut = .455" (top knives.)

Thickness = .718" / Depth of Cut = .437" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
