Shiplap Moulding 5-1/2" - 2

Shiplap Moulding 5-1/2" - 2

Shiplap Moulding 5-1/2" - 2

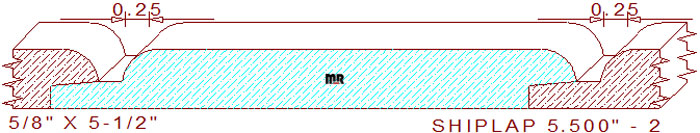

This rounded channel shiplap siding molding 5-1/2" - 2 measures 5.500" wide by .625" thickness, allowing the detail to be milled from four quarter lumber. The decorative profile is composed of a 4-3/4" wide straight line with 3/8" rounded edges, attached to a 3/4" wide line segment with a 1/2" of it tapered to fit in the rabbeted area on the left side of the pattern. When two pieces of milled lumber are joined together they create an exposed face dimension of five inches wide, with a 1/4" wide by 3/8" deep channel between the rounded edges as illustrated in the image above.

Our high precision acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, or Homag molder, our cutters will mill flawlessly on them all.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = .465" (top knives.)

Thickness = .625" / Depth of Cut = .500" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
