Shiplap 5-1/2" - 3

Shiplap 5-1/2" - 3

Shiplap 5-1/2" - 3

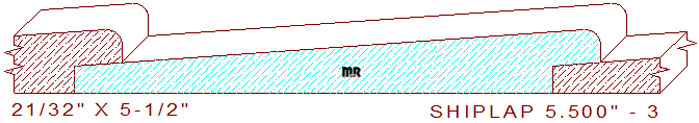

This 5-1/2" - 3 beveled shiplap siding measures 5.500" wide by .656" thickness, allowing the detail to be milled from four-quarter lumber. The tapered profile is composed of a 4.108-degree angled line that transitions the thickness from 11/32" on the larger side to 9/32" on the thin side with a 5/32" rounded edge. The rabbet dimension is 1/2" wide by 9/32" tall, making the exposed face measurement of the lumber five inches wide when installed.

Ever wonder why certain species of lumber have tear-out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the knives. Purchasing 12/20 duel angle cutter heads will save a substantial amount of money when investing in this style of tooling.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.656
Depth of Cut: 0.500
Top Cutter Head
Width: 5.500
Depth of Cut: 0.390
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$130.50
$355.50
Not Needed
Total:
$486.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$137.50
$380.50
Not Needed
Total:
$518.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$144.50
$405.50
Not Needed
Total:
$550.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
