Shiplap 5-1/2" - 5

Shiplap 5-1/2" - 5

Shiplap 5-1/2" - 5

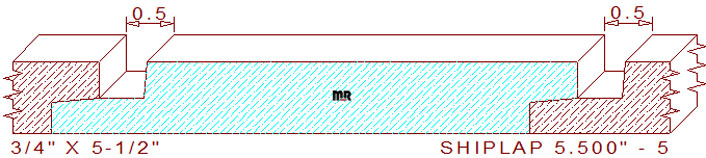

This 5-1/2" - 5 channel shiplap siding measures 5.500" wide by .750" thickness, allowing the pattern to be machined from four-quarter lumber. The exposed coverage dimension is five inches wide when installed. The decorative siding profile is composed of a 4-1/2" broad straight line with a one inch wide by 3/8" deep rabbet on one side edge of the detail. There is a five-degree taper on the 1/2" drop-in elevation with another one on the rabbet, our high precision acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. When two pieces of milled lumber are joined together, they create a 1/2" wide by 3/8" deep channel/dado on the face side of the merged boards.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our moulding designs. Whether you own a recently built house or an older-style residence, we have the ability, knowledge, and experience to create profiles that will complement the architectural decor of your elegant home or office.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.500
Top Cutter Head
Width: 5.500
Depth of Cut: 0.430
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$130.50
$355.50
Not Needed
Total:
$486.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$137.50
$380.50
Not Needed
Total:
$518.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$144.50
$405.50
Not Needed
Total:
$550.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
