Shiplap Siding 7-1/8" - 1

Shiplap Siding 7-1/8" - 1

Shiplap Siding 7-1/8" - 1

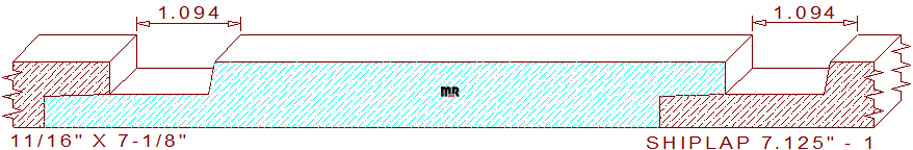

This 7-1/8" - 1 shiplap channel/gap siding measures 7.125" wide by .687" thickness, permitting the pattern to be machined out of four-quarter lumber. The ornamental profile is comprised of a 5-11/32" wide line segment with a one-hundred degree beveled edge that is designed to wick away moisture when wet, connected to a 21/32" wide flat line and an 11/16" wide six-degree angled edge on the left. When two pieces of milled lumber are joined together, they create a 1-3/32" wide by 11/32" deep channel on the face side of the merged boards. The exposed face coverage dimension when installed is 6-7/16" wide. We offer alternative patterns in this same style, but with different widths on the size of the channel for your review and consideration, shiplap - 7.125" - 7, shiplap - 7.125" - 10 and shiplap - 7.125" - 16.

Mirror Reflections offers thousands of inspirational and compelling architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download all our free moulding dxf files, and see how easily the services we provide can increase productivity while reducing manufacturing costs.

For moulding knife quoting purposes click to open the calculator below; we supplied only the important measurements; just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.125" / Depth of Cut = .405" (top knives.)

Thickness = .687" / Depth of Cut = .688" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
