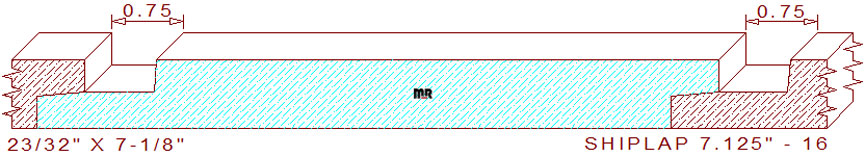

This channel shiplap siding 7-1/8" - 16 measures 7.125" wide by .718" thickness, enabling the pattern to be milled out of four-quarter lumber. The functional profile is comprised of a 5-7/8" wide line segment with a ninety-five-degree beveled edge designed to wick away moisture when wet, connected to a 3/4 wide flat line and a 1/2" wide five-degree angled edge on the left. When two pieces of milled lumber are joined together they create a 3/4" wide by 11/32" deep channel on the face side of the merged boards, making the exposed face coverage dimension 6-5/8" wide after installation. We offer alternative patterns in this same style but with different channel widths for your review and consideration, shiplap - 7.125" - 1, shiplap - 7.125" - 7 and shiplap - 7.125" - 10.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.718
Depth of Cut: 0.500
Top Cutter Head
Width: 7.125
Depth of Cut: 0.391
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$134.00
$452.50
Not Needed
Total:
$586.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$141.00
$484.00
Not Needed
Total:
$625.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$151.50
$531.25
Not Needed
Total:
$682.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
