Shiplap Moulding 7-1/4"

Shiplap Moulding 7-1/4"

Shiplap Moulding 7-1/4"

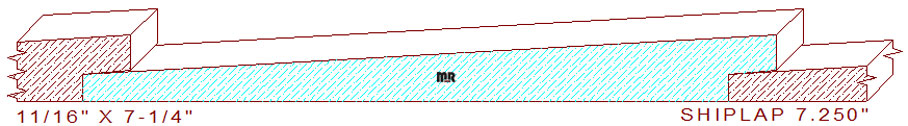

This beveled shiplap siding molding 7-1/4" measures 7.250" wide by .687" thickness, allowing the pattern to be machined out of four quarter lumber. The canted profile is comprised of a 5.394 degree angled line that runs along the entire face of the design, transitioning the thickness from 11/16" in height on the right, above the 1/2" wide by 9/32" tall rabbet, to a 9/32" on the left side of the design. When two pieces of milled lumber are joined together, they create a 6-3/4" exposed face dimension between the joined boards.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind molder knives for all the major brand names of machinery, including Weinig, Leadermac, Homag, Scmi, Diehl, Wadkin, Williams & Hussey, and more? Try our exceptional services; you'll be delighted with the results; all the beautiful patterns you manufacture will surely be a cut above the rest.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.250" / Depth of Cut = .416" (top knives).

Thickness = .687" / Depth of Cut = .500" (right blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
