Shiplap Moulding 7-1/4" - 5

Shiplap Moulding 7-1/4" - 5

Shiplap Moulding 7-1/4" - 5

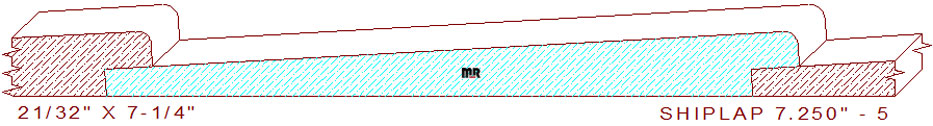

This beveled shiplap siding moulding 7-1/4" - 5 measures 7.250" wide by .656" thickness. The pattern will require the use of a 7-1/2" wide blank of four-quarter lumber for milling on an industrial molder. The traditional clapboard profile comprises a 3.205-degree angle that transitions the thickness from .656" on the thicker edge down to 9/32" on the smaller side. The rabbet dimension is 9/32" tall by 1/2" wide with a 5/32" rolled edge on the taller side of the pattern.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind molder knives for all the major brand names of machinery, including Weinig, Leadermac, Homag, Scmi, Diehl, Wadkin, Williams & Hussey, and more? Try our exceptional services; you will be delighted with the results; all the beautiful moldings you manufacture will surely be a cut above the rest.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 7.250" / Depth of Cut = .390" (top knives).

Thickness = .656" / Depth of Cut = .312" (right blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
