Shiplap Moulding 8-5/8"

Shiplap Moulding 8-5/8"

Shiplap Moulding 8-5/8"

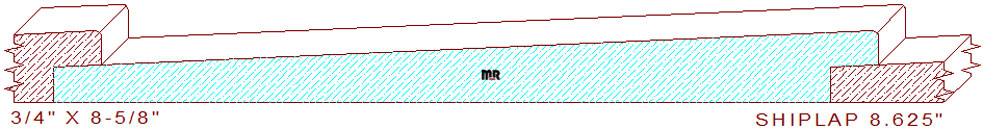

This beveled shiplap siding molding 8-5/8" measures 8.625" wide by .750" thickness, permitting the detail to be machined out of four quarter lumber. The down-sloping profile is composed of a 1/16" radius edge above the 3/8" tall by 1/2" wide rabbet on the top right, tangent to a 2.508 degree angled line that transitions the thickness to 3/8" on the left side of the design. When two pieces of lumber are joined together they create a 3/8" drop shiplap siding with a face coverage of 8-1/8" wide. We offer an alternative profile in the identical width but a bit smaller in thickness and in overall face coverage for your review and consideration, drop siding 8.625" - 5.

Utilize any of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years experience in woodworking and was a former Weinig moulder/grinder field service technician. From just an idea in one's mind to reality in their home, our custom profiles reflect the creative style of your imagination; let us assist you in complementing the architectural decor of any room with any one or more of our attractive molding patterns.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 8.625" / Depth of Cut = .390" (top knives.)

Thickness = .750" / Depth of Cut = .500" (right blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
