Shiplap Moulding 8-5/8" - 5

Shiplap Moulding 8-5/8" - 5

Shiplap Moulding 8-5/8" - 5

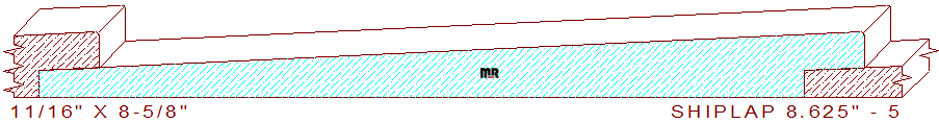

This beveled shiplap siding molding 8-5/8" - 5 measures 8.625" wide by .687" thickness, enabling the detail to be milled out of four quarter lumber. The canted profiled is composed of a 3/64" rounded edge above the 9/32" tall by 5/8" wide rabbet on the top right, tangent to a 2.695 degree angled line that transitions the thickness to 9/32" on the left side of the design. When two pieces of milled lumber are joined together they create a 3/8" drop shiplap siding with a face coverage dimension of eight inches wide. We offer another profile in the same width for your review and consideration, this one is slightly larger in thickness and in overall face coverage due to the size of the rabbet, drop siding 8.625".

Try one of our 125% concentration ultimate CBN (cubic boron nitride) grinding wheels, finish grinding at 3000 rpm with a twenty-degree back clearance angle will create a superior micro edge on all your high-speed steel profile knives. Read this article or watch the videos to help better understand how to align a borazon wheel to axial constant position on a Weinig R960 profile grinder. During the machining process, the knives will be capable of milling some of the finest quality architectural patterns you have ever produced.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 8.625" / Depth of Cut = .417" (top knives.)

Thickness = .687" / Depth of Cut = .625" (right blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
