Shiplap Moulding 8-5/8" - 3

Shiplap Moulding 8-5/8" - 3

Shiplap Moulding 8-5/8" - 3

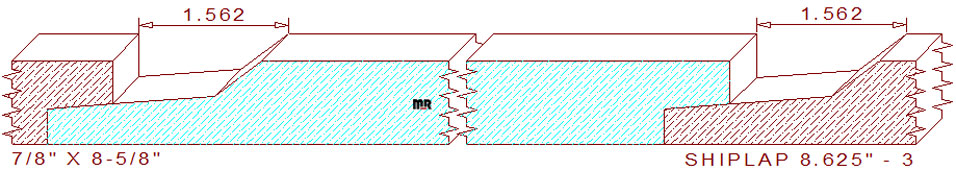

This 1-9/16" channel shiplap siding moulding 8-5/8" - 3 measures 8.625" wide by .875" thickness, enabling the detail to be machined from either four or five quarter lumber. The well-designed profile is composed of a 6-3/8" wide straight flat line in the center, attached to a 1/2" wide by 3/8" deep 36.918 degree angled line that transitions the thickness to 1/2" in the center, joined to a 1-3/4" wide 4.086 degree angled line, 11/16" of this line fits into the rabbet on the opposite side. When two pieces of milled lumber are joined together they create a 1-9/16" wide by 29/64" obtuse tapered channel to help displace moisture, the exposed face coverage dimension for installation purposes becomes 7-15/16" wide. We offer a few alternative profiles in the same width but with different sized plows for your review and consideration, shiplap siding 8.625" - 2, shiplap siding 8.625" - 4 and shiplap siding 8.625" - 6.

This cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing knives for this creative shiplap siding pattern, one for milling the entire face, one for the rabbet and one for milling just the profile poortion of the design. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path expediting the production process.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 8.625" / Depth of Cut = .390" (top knives.)

Thickness = .687" / Depth of Cut = .375" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
