Shiplap Moulding 8-5/8" - 4

Shiplap Moulding 8-5/8" - 4

Shiplap Moulding 8-5/8" - 4

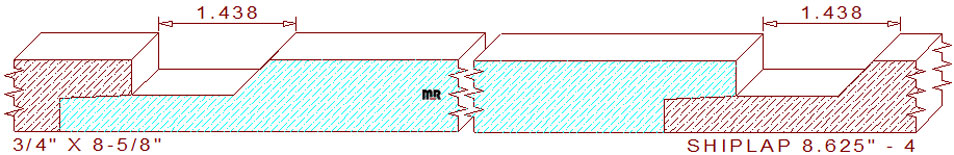

This 1-7/16" channel shiplap siding moulding 8-5/8" - 4 measures 8.625" wide by .750" thickness, permitting the detail to be machined from four quarter lumber. The modest profile is composed of a 6-7/16" wide straight flat line in the center, attached to a 3/8" wide by 3/8" deep forty-five degree angled line that transitions the thickness to 3/8" in the center, joined to a 1-1/16" wide line segment and a 3/4" wide four degree tapered line that fits into the rabbet on the opposite side. When two pieces of milled lumber are joined together they create a 1-7/16" wide by 3/8" deep tapered on one edge channel, the exposed face coverage dimension for installation purposes becomes 7-7/8" wide. We offer a few other profiles in the same width but with different sized channels for your review and consideration, shiplap siding 8.625" - 2, shiplap siding 8.625" - 3 and shiplap siding 8.625" - 6.

Mirror Reflections provides the cut steel size on all their molding template designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of them caring about the overall success of your business.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 8.625" / Depth of Cut = .445" (top knives.)

Thickness = .750" / Depth of Cut = .750" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
