Shiplap 3/4" - 29

Shiplap 3/4" - 29

Shiplap 3/4" - 29

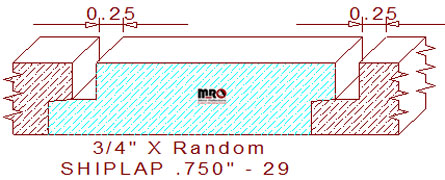

This 3/4" - 29 shiplap siding measures .750" thickness, allowing any size width blank of four-quarter lumber for milling on a commercial moulder. The gapped profile contains a 1/2" wide by 3/8" tall tongue on the top left. The opposite side retains a 1/4" wide by 3/8" tall rabbet. When two pieces of milled lumber are joined, they create a 1/4" wide by 3/8" deep decorative channel between the joined boards.

Our professionally designed acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail. It will also prolong the milling time between sharpening. Regardless if you own an industrial shaper or a Weinig, Wadkin, Leadermac, SCMI, Diehl, Northtech, or Homag molder, our precision cutters will mill flawlessly on them all.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.500
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.250
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
Not Needed
Not Needed
Total:
$261.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
Not Needed
Not Needed
Total:
$275.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
Not Needed
Not Needed
Total:
$289.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
