Shutter/Louver 1-3/16"

Shutter/Louver 1-3/16"

Shutter/Louver 1-3/16"

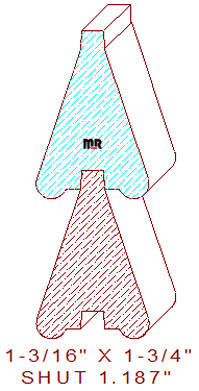

These false louver 1-3/16" measure 1.187" wide by 1.750" thickness. The decorative pattern is stacked on each other when assembled, creating an appearance of a closed shutter; this is a great option for closet or pantry doors The profile comprises a 1/4" wide by 3/16" deep tongue and groove flanked by 1/8" horizontal lines and 5/32" radius circles at the bottom. The sides consist of 18.552-degree angled lines that taper upward to make the tongue portion of the design. The thickness of the pattern controls how tight the tongue fits into the groove.

Review our commentary on custom-made pressure shoes this helpful step-by-step article will help you mill this profile to perfect. We design and grind knives for all the major machinery brand names, including Weinig, Leadermac, Diehl, Kentwood, Wadkin, Scmi, Shop Fox, Williams & Hussey, and more. Try our exceptional services; you'll be delighted with the results; all the beautiful profiles you manufacture will surely be a cut above the rest.

For knife quoting purposes use the calculator below; we have added only the important measurements. A brief detailed explanation of how to use the calculator is located here.

Width = 1.750" / Depth of Cut = 477" (top knives) & .477" (bottom cutters).

Thickness = 1.187" / Depth of Cut = .289" (right blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
