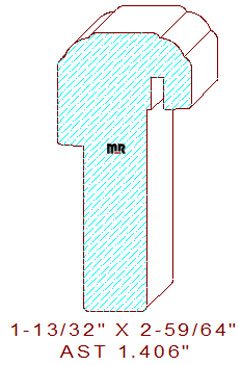

This exterior door t-astragal 1-13/32" - 1 measure 1.406" wide by 2.921" tall, allowing the pattern to be milled laying horizontally flat using six or eight-quarter lumber. The functional profile consists of a 3/4" wide by 1/16" tall raised fillet with 1/8" round edges, flanked by a 9/32" and 1/8" cascading radiuses on top. The left side of the pattern is rabbeted 1-3/4" wide by 9/32" deep. The opposite side is rabbeted 2-1/8" wide by 15/32" deep, leaving a 21/32" width dimension in the center bar. A couple of options mills the weather strip groove. A universal cutterhead spindle could cut it on the moulder, or on a table saw and router table using a spline cutter after the machining process. We offer an alternative profile with a 1/2" center dimension for your review, t-astragal 1.406" - 1.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.406
Depth of Cut: 0.500
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.938
Depth of Cut: 0.687
Bottom Cutter Head
Width: 2.938
Depth of Cut: 0.500
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
