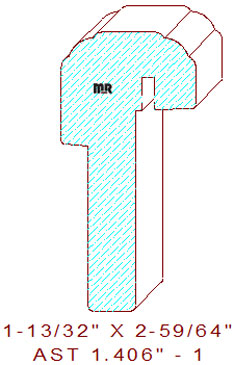

This Exterior Door T Astragal Moulding 1-13/32" - 1 measures 1.406" wide by 2.921" tall, the functional profile consists 3/4" wide 1/8" radius edge fillet flanked by a 7/32" and 1/8" cascading radiuses on top, one side of the pattern is rabbeted 1-3/4" wide by 9/32" deep, the opposite side is rabbeted 2-1/8" wide by 5/8" deep. The weather strip groove would have to be milled on a universal spindle on an industrial moulder or on a table saw after milling. This Cad generated Dxf file contains three skillfully drafted moulding template designs for creating custom moulding knives for this pattern. We literally have thousands of functional moulding profiles that associate themselves with skilled woodworkers, architects, and interior designers, find yours now.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
