Tongue & Groove 2-7/8" - 1
Tongue & Groove 2-7/8" - 1

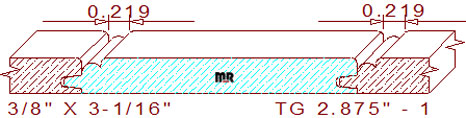

This beadboard 2-7/8" - 1 tongue & groove measures 3.062" width overall by .375" thickness, and the exposed face dimension is 2.875" wide. The decorative wainscot profile is used as interior wall paneling. It has a 2-11/16" broad center with 1/16" radius edges, attached to a recessed 3/16" wide half-round bead. The tongue and groove have a built-in .006" void in the joint area to ensure a good fit when installed. Browse our caps category for some beautiful profiles to cover the end grain of the wood after installation; here is just one you may want to review and consider, wainscot cap 1.500" - 16.
Do you ever wonder why certain wood species have tear-out issues during milling? Find out more about reducing and eliminating these issues by changing the cutter head hook angle on the knives. Consider purchasing 12/20-degree duel angle cutter heads. Your company will save substantial money when investing in unique tooling .
The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.375
Depth of Cut: 0.218
Left Cutter Head
Thickness: 0.375
Depth of Cut: 0.187
Top Cutter Head
Width: 2.875
Depth of Cut: 0.184
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$231.50
Not Needed
Total:
$499.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$246.00
Not Needed
Total:
$528.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$267.75
Not Needed
Total:
$570.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
