Tongue & Groove 4-3/4"

Tongue & Groove 4-3/4"

Tongue & Groove 4-3/4"

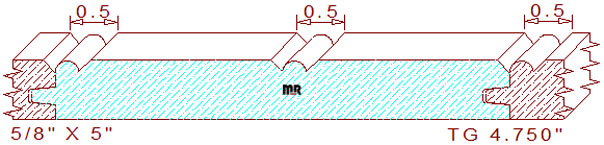

This beaded 4-3/4" tongue & groove paneling measures 5.000" width by .625" thickness. The overall size allows a 5-1/4" wide blank of four-quarter lumber for milling on an industrial moulder. The small beaded profile contains a 9/32" wide by 1/4" tall groove on the right and a 1/4" wide by 1/4" tall tongue on the left. There is a .010" void in the T&G joint area for seasonal changes in relative humidity. The top comprises a recessed (.015") 1/4" wide half-circle joined to a 1/16" broad angle on the left. The top face consists of two 1-7/8" broad flat sections divided by a 1/4" wide half-circle flanked by 1/8" broad forty-five-degree angles. When two pieces of milled lumber merge, they create a 4-3/4" face coverage dimension with 1/2" wide beaded v-shaped channels.

Ever wonder why some knives never precisely line up with one another in the cutter head? Perhaps a Weinig optical measuring stand and reviewing the process in which you align the blades in the cutter head will help eliminate this issue.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.625
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.625
Depth of Cut: 0.250
Top Cutter Head
Width: 4.750
Depth of Cut: 0.280
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
$318.00
Not Needed
Total:
$579.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
$340.00
Not Needed
Total:
$615.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
$362.00
Not Needed
Total:
$651.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
