Tongue & Groove 3/4" - 79
Tongue & Groove 3/4" - 79

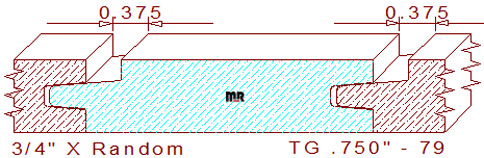

This 3/4" - 79 nickel board siding measures .750" in thickness, and width and can be machined to any desired size within the parameters of the moulder/shaper used to mill the pattern. The profile is comprised of a 7/16" wide by 1/4" tall groove and a 3/4" wide by 1/4" tall offset tongue; there is a .015" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of milled lumber are joined together they create a 3/8" dado on one face side of the merged boards. We offer another profile intended for blind nailing with the same 3/8" gap with different inner dimensions on the tongue & groove for your review and consideration, t & g .750" - 49.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.437
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.750
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$141.00
Not Needed
Not Needed
Total:
$275.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$148.00
Not Needed
Not Needed
Total:
$289.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$158.50
Not Needed
Not Needed
Total:
$310.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
