Stemware/Wine Glass Moulding 3" - 23

Stemware/Wine Glass Moulding 3" - 23

Stemware/Wine Glass Moulding 3" - 23

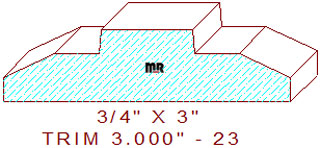

This wine glass rack molding 3" - 23 measures 3.000" wide by .750" thickness. The profile is composed of a 1" wide by 1/4" tall raised fillet used for securing the wood to its frame, the 1/4" space is intended for the base rim of the glass to rest on, the chamfer is designed for the glass to be inserted. These moldings are utilized in the assembly of stemware racks, for storing glassware upside down from the wide base at the bottom, you find these in and around wine tasting areas, pubs, restaurants and fancy homes with stylish cabinetry. We have many different options for these types of stemware mouldings, here are just a few examples you may want to review and consider, trim 3.000" - 3, trim 3.000" - 5 and trim 3.000" - 7.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Review our article on the importance of having the profile grinder level, this commentary will insure prolonged use of your machinery while maintaining consistent perfection when grinding cutters.

For knife quoting purposes use the calculator below, we have added only the important measurements. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .593" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
