Wine Glass Stemware Moulding 3" - 24

Wine Glass Stemware Moulding 3" - 24

Wine Glass Stemware Moulding 3" - 24

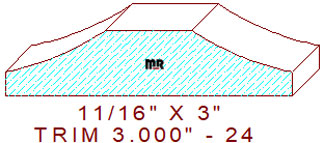

This wine glass stemware moulding 3" - 24 measures 3.000" wide by .750" thickness. The design consists of a 29/32" wide horizontal line in the center, attached to a 2-7/8" radius cavetto on each side leaving a 1/4" tall thickness dimension on the side edge of the pattern. These types of mouldings are utilized in the construction of stemware racks for storing glassware upside down by the wide base at the bottom of the glass. We have a few options of this design, here are just a few examples you may want to review and consider, trim 3.000" - 3, trim 3.000" - 5 and trim 3.000" - 7.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes use the calculator below, we have added only the important measurements. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .492" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
