Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Stemware Moulding 3-1/8" - 1

Stemware Moulding 3-1/8" - 1

Stemware Moulding 3-1/8" - 1

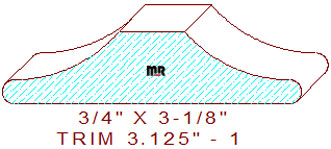

This stemware rack trim moulding 3-1/8" - 1 measures 3.125" wide by .750" thickness. The functional design is comprised of a 11/16" wide horizontal line in the center, flanked by a 1-7/16" radius cove that transitions into a 1/4" wide half round circle on each side edge of the design. We have many different options for these types of stemware mouldings, here are just a few examples you may want to review and consider, trim 3.000", trim 3.000" - 19 and trim 3.000" - 23.

These types of moldings are utilized in the assembly of stemware racks for storing glassware upside down from the wide base at the bottom of the glass, they are generally applied to a shelf or the bottom of an upper cabinet which are installed in and around wine tasting areas, pubs, restaurants and fancy homes with stylistic cabinetry. Custom-made elegance is a phrase used to define the beauty, style and artisan-ship of thousands of our moulding designs.

For knife quoting purposes use the calculator below, we have added only the important measurements. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.125" / Depth of Cut = .500" (top knives).

Thickness = .750" / Depth of Cut = .246" (right blades) & .246" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
